Power | 20KW | 30KW | 50KW | 60KW |
Electric Supply | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ |
Output | 17200Kcal/h | 25800Kcal/h | 43000Kcal/h | 60200Kcal/h |
Output | 69000Btu/h | 105000Btu/h | 170600Btu/h | 238840Btu/h |
Motor Power | 250W | 250W | 340W | 430W |
Air Displacement | 595m3/h | 720m3/h | 1100m3/h | 1300m3/h |
Heatted Area | 100-200m2 | 200-300m2 | 300-400m2 | 500-600m2 |
Fuel Consumption | 1.7L/h | 2.5L/h | 4.7L/h | 5.8L/h |
Fuel Tank Capacity | 20L | 32L | 56L | 69L |
Products Size | 850*350*340mm | 970*385*370mm | 1140*415*415mm | 1310*430*430mm |
Packing Size | 950*400*420mm | 1070*435*450mm | 1240*465*495mm | 1410*480*510mm |
N.W. | 16.2Kg | 22.0Kg | 30kg | 39.5kg |
G.W. | 18.5Kg | 24.5Kg | 32.5kg | 42kg |

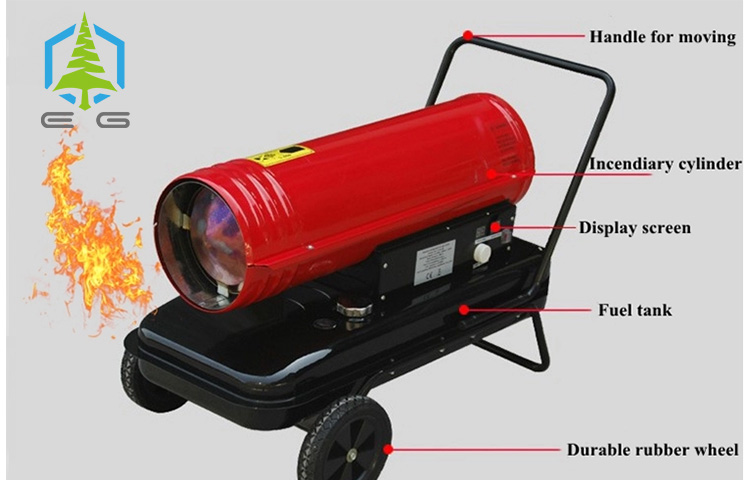

Advantage of the farming heating engineering
1. Unique ,tough and portable design,high quality wheel.
2. Fuel burning more sufficiently,no smell.
3. Stainless steel combustion chamber with fan cooling
4. LCD digital control panel,there's time switch
5. If no oil , heater will cut off the power automatic
6. Fuel gauge
7.Cut-off protection,re-plugged in will not work automatically
8.Low pressure atomization,combustion completely,made by Danfoss Brass oil burner nozzle
9.Dump cut-off protection device.
10.Built-in thermostat,can be connected with external temperature controller
11.Overheating protection device.
12.Can be used -40 degree.
Before Order
1. Provide sample to customer
2. Help customer design according to requirements
3. Provide best price
Delivery
1. Help booking container and arrange well logistics
2. Free charge loading container
After-Sale Service
1. Oversea service provide
2. 2 years warranty
