Specifications of 36 inch upper ventilation fan water proof for example
| Model | HYA-1000（36’’） | ||||||
| Diameter of blades(mm) | 900 | ||||||
| Rotational speed of blade(rpm) | 610 | ||||||
| Rotational speed of motor(rpm) | 1400 | ||||||
| Air flow(m³/h) | 30000 | ||||||
| Total pressure(Pa) | 70 | ||||||
| Noise (Db) | ≤70 | ||||||
| Input power(W) | 550 | ||||||
| Rated voltage(V) | 380 | ||||||
| Height(mm) | 1000 | ||||||
| Width(mm) | 1000 | ||||||
| Thickness(mm) | 400 | ||||||
| Material of frame | SS304 | SS201 | SS410 | Galvalume | Galvanized 275 | Galvanized 180 | Galvanized 80 |
| Material of blade | SS304 | SS201 | SS410 | Galvalume | SS410 | SS410 | SS410 |
| EXW PRICE(USD/SET) | 190 | 165 | 157 | 150 | 150 | 147 | 145 |
| FOB YIWU(USD/SET) | 203 | 178 | 170 | 163 | 163 | 160 | 158 |
| DDP TONDO(USD/SET) | 270 | 245 | 238 | 230 | 230 | 227 | 225.5 |

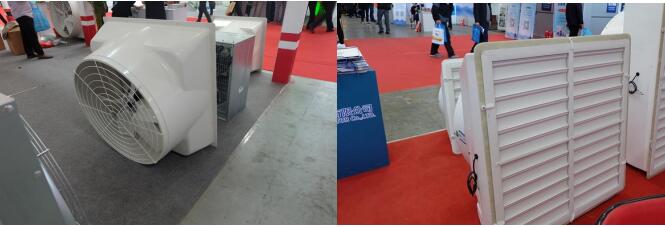

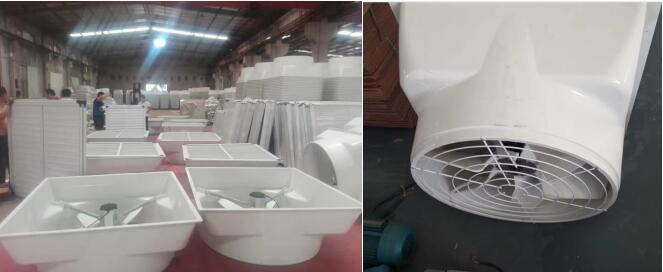

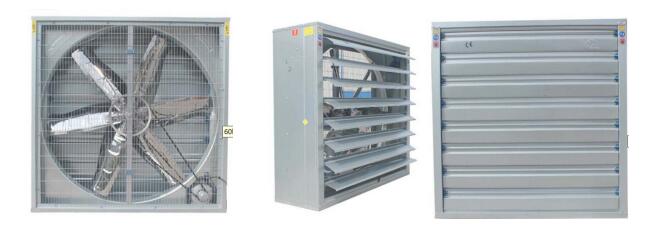

Wall fan factory selling 36'' ventilation fiberglass exhaust fan
For pig or poultry farm, this exhaust fan is used together with cooling pad, need closed all windows when turn on. About how big size you should buy, it is up to the size of your windows, how many you need to buy according to your farm dimension.
You can me sizes, your detailed requests as well as Qty, then I will give your price.
Technical Parameters of Wall fan factory selling ventilation fiberglass exhaust fan:
| Model
|
Diameter of
Blade mm |
Air Flow
m³/h |
Power
kw |
Size of Outer
Frame mm |
Voltage
v |
Frequency
hz |
|
RSX-850
|
650 | 30000 | 0.37 | 850×850×480 | 380 | 50 |
|
RSX-1060
|
900 | 34000 | 0.55 | 1060×1060×550 | 380 | 50 |
|
RSX-1260
|
1070 | 40000 | 0.75 | 1260×1260×560 | 380 | 50 |
|
RSX-1380(50'' with butterfly cone)
|
1250 | 46000 | 1.1 | 1380×1380×1320 | 380 | 50 |
|
RSX-1460
|
1100 | 38000 | 1.1 | 1220×1220×400 | 380 |
Diff pressure sensor: from Japan
Tachometer: from USA
Air pressure sensor: from USA
Temperature and humidity sensor: from Switzerland
Our advantage:
1. One-stop service (help you choose pig breeds, build your farm, sell your piglets and teach you how to feed pigs ect).
2. Factory price.
3. Full experiences, can give you good advices on farm and import.
FAQ:
1.Q: Can you offer free sample?
A:Yes.but usually the customer need to pay the freight.
2.Q: Are you the manufacture?
A:Yes . we have been in providing the professional products in fence field for 10 years.
3.Q: what's the material?
A:The material is galvanized pipe and stainless steel wire.
4. Q: Can I customize the products?
A:Yes ,as long as provide specifications, drawings, can only do what you want product.
5. Q: How about the delivery time?
A: Usually within 15-20days,customized order may need longer time.
6. Q:How about the payment terms?
A: T/T(with 30% deposit), L/C at sight weston union.
7..Q:How about the cage quality ?
A: Weclome to visit our factory . when you come you will know our quality products.
8.Q: How much is the life of your products?
A:10 Years pig
