Pig feeder is a main element for pig farm. And nowadays the farm’s scale is getting bigger and bigger. So most of pig farmer would like to choose some equipment or instruments to help them manager the farm more efficiently, automatically and convenient.

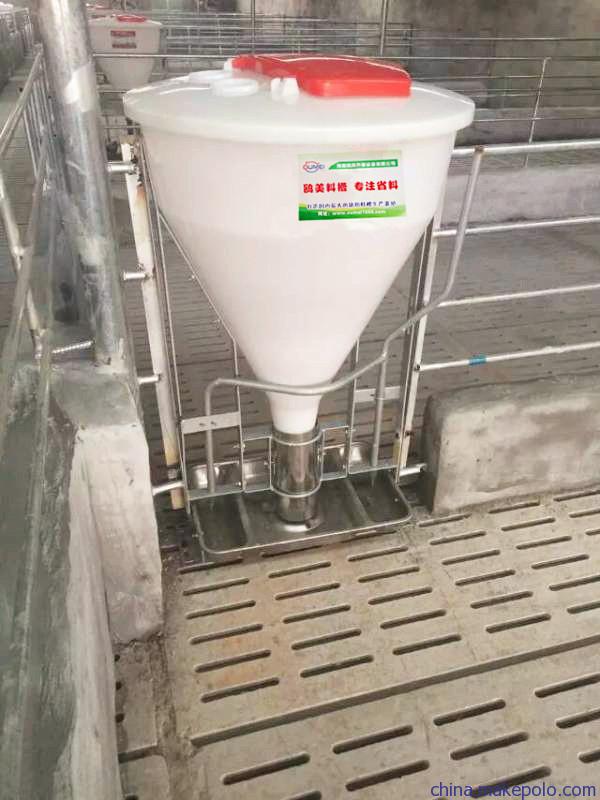

This below type automatic dry and wet pig feeder is just a kind of auto feeder which is designed and manufactured in order to cater for farmers’ above new demands. Most of the time they are used together with the automatic feeding lines for pig farm.This pig feeder is called dry wet feeder exactly, able to let pig eat feed and drink water at the same time. For this dry wet feeder, we have 50kg, 80kg and 100kg type. Normally 50kg is for weaning piglets in nursery bed/crate, 80kg or 100kg are for fattening pigs in fattening stall/ finishing stall.
Some of our customers have special requests for the color of cover, for example they need green or yellow color, It is also okay we can also provide other colors and customers can also customize the size of silo and bottom pan.

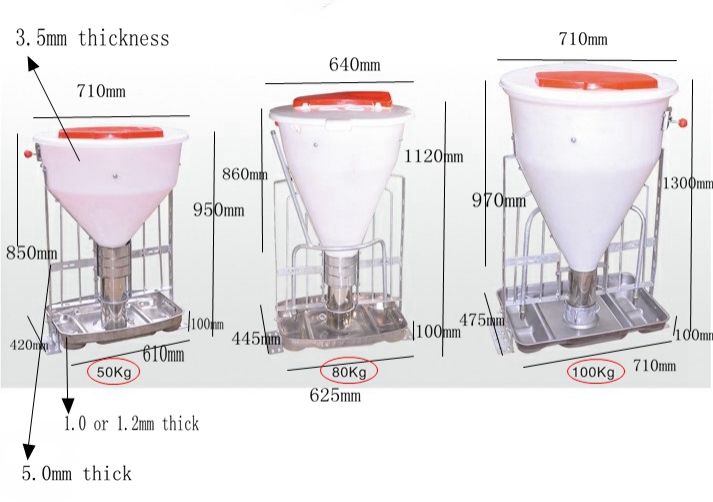

Detailed dimension of pig auto feeder:
Capacity | 50kg(80L) | 80kg(110L) | 100kg (146L) |
Silo | Φ710*850mm PP | Φ640*860mm PP | Φ710*970mm PP |
Pan | 610*420*80mm
SS304 1mm thickness |
625*445*100mm
SS304 1mm thickness |
710*475*100mm
SS304 1mm thickness |
Total height | 1120mm | 1120mm | 1300mm |
Total weight | 19kg | 22kg | 23kg |
Frame | 40*5mm | 40*5mm | 50*50mm
40*5mm |
Feed ability | for 40 piglets | for30-35 fattening pigs | for 30-35 fattening pigs |
Life time | about 10-15 years | ||
Water pipe | hot galvanized steel | ||
Drinker | SS nipple drinker |

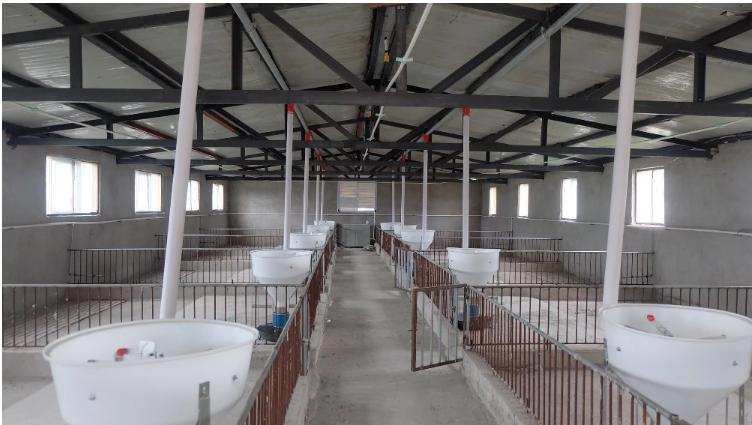

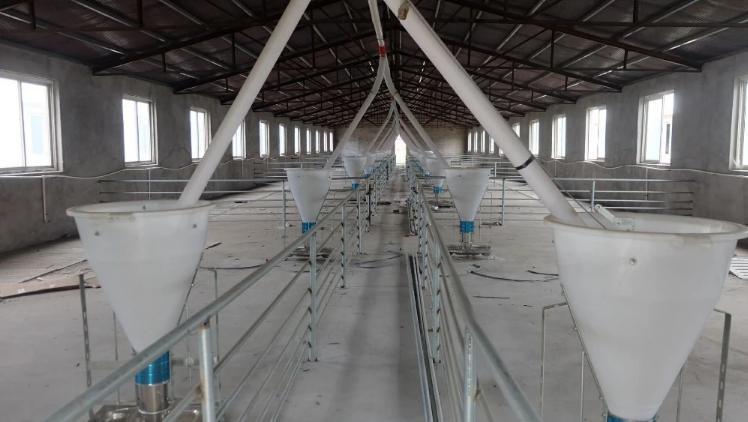

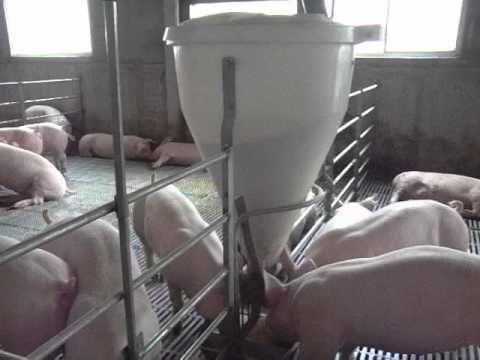

Application of pig auto feeder:

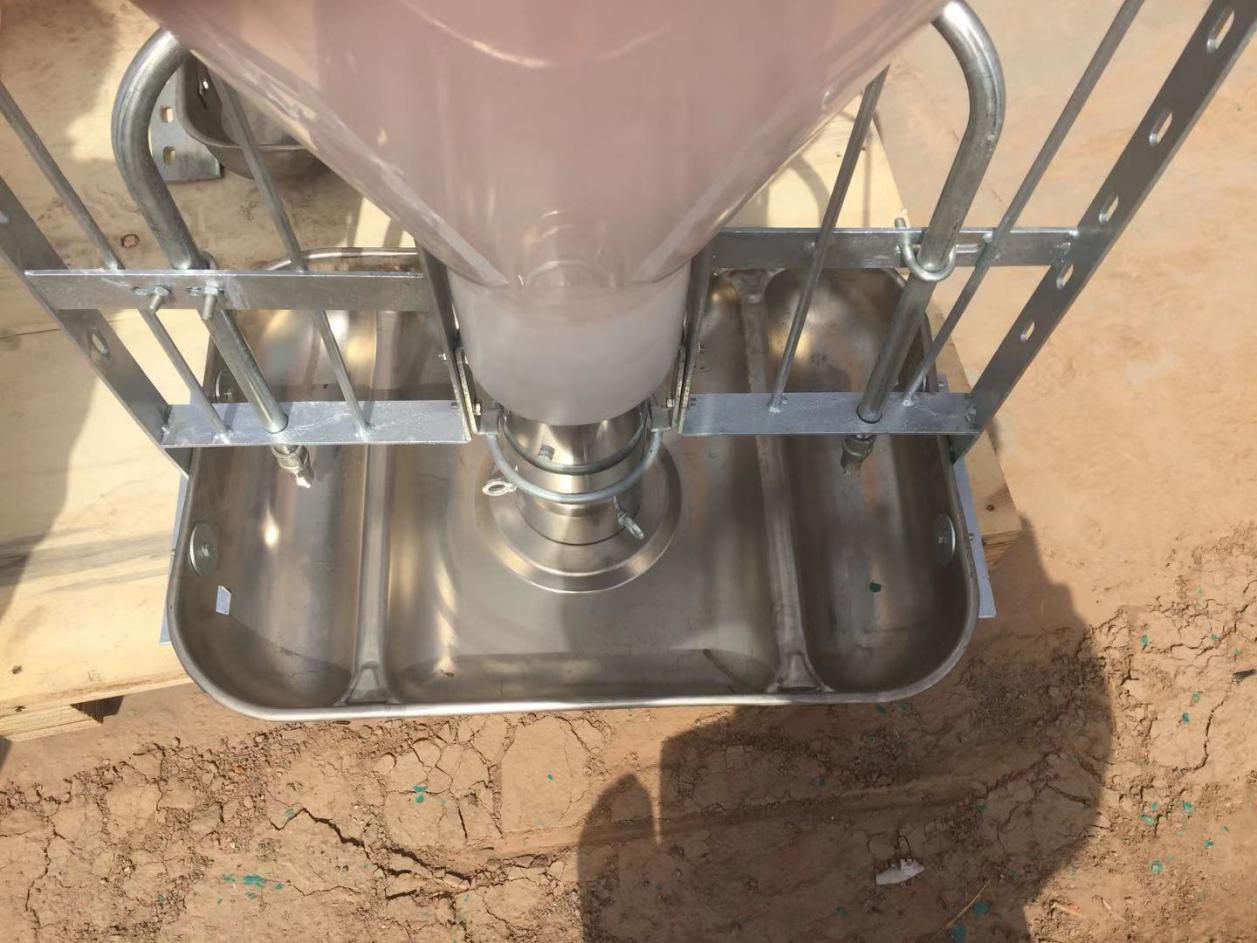

Package of delivery of auto dry and wet feeder:
