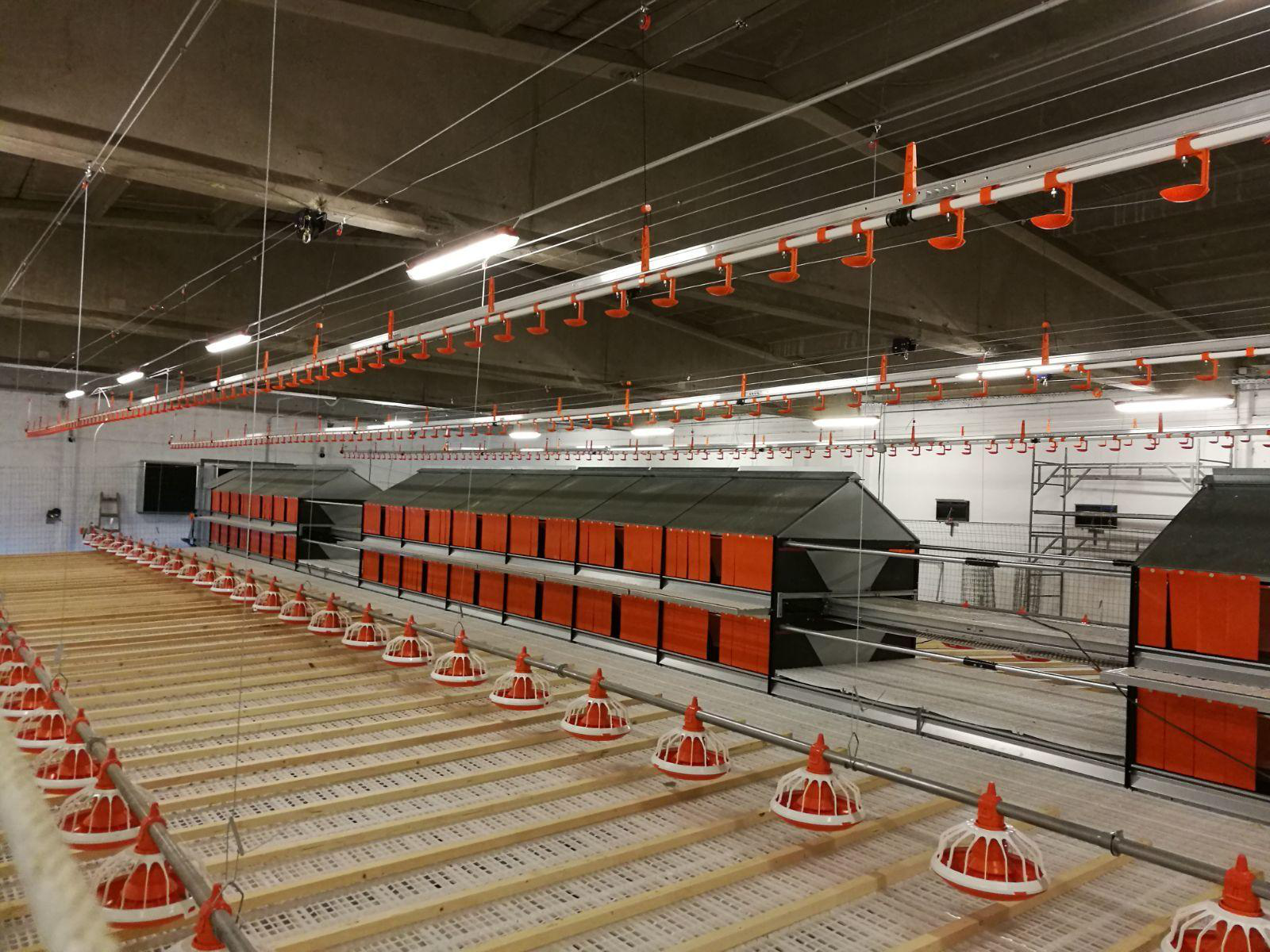

Automatic poultry broiler farm pan feeding system poultry farm equipment

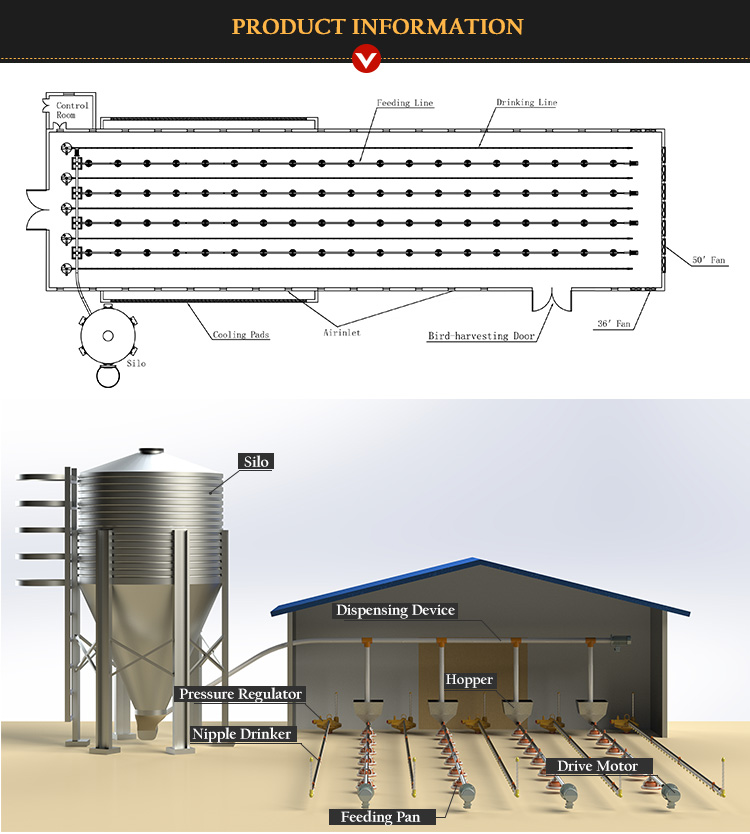

A Complete Set Poultry Farming Equipment Automatic Machine For Broiler Chicken Includes The Following Parts:
Automatic Pan Feeding System
Automatic Nipple Drinking System
Plastic Slat & Manure Cleaning System
Environment Control System

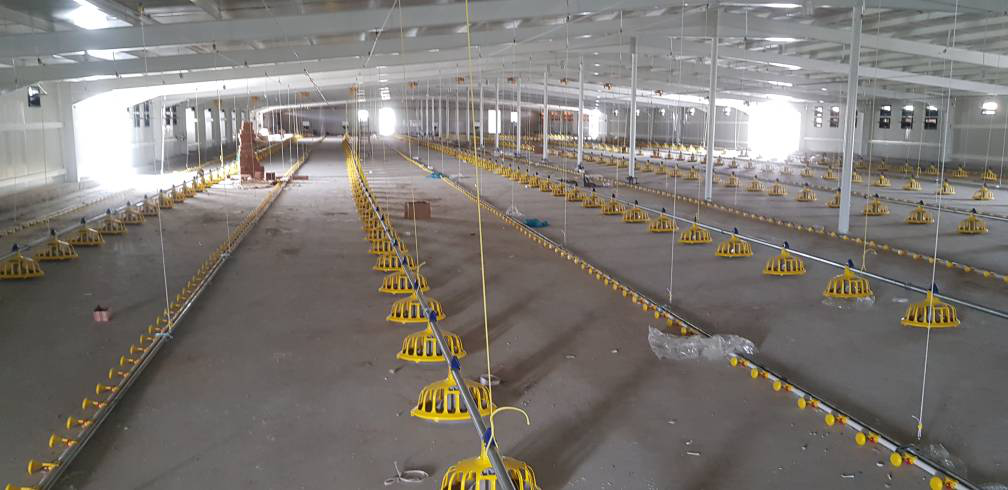

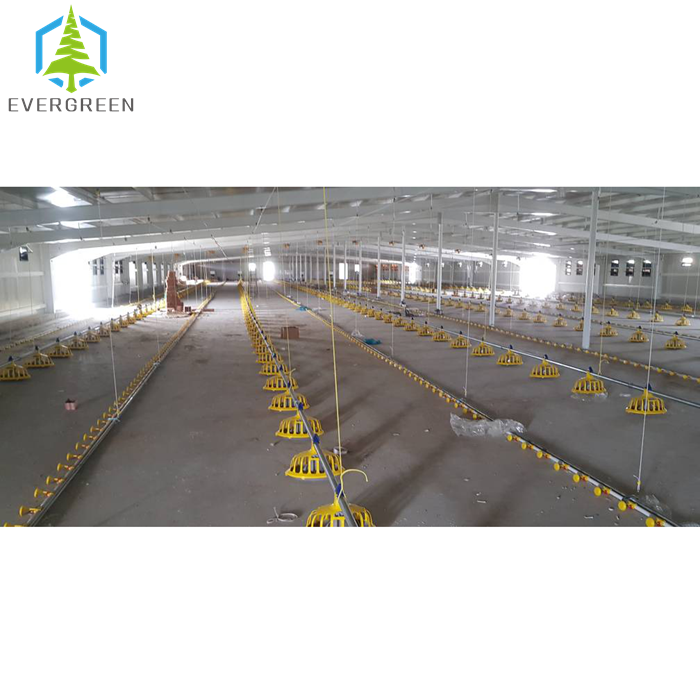

| Raising broiler on ground is the traditional raising mode. |
| * Adopt hot-dip galvanization technology to ensure the service life of 15-20 years. |
| * Automatic feeding, drinking and environment control system can help to save energy and improve the working efficiency. |
| Features: |
| * Low equipment investment. |
| * Equipment is simple and easy to operate. |
| * Save labor cost. |
| * High survival rate. |

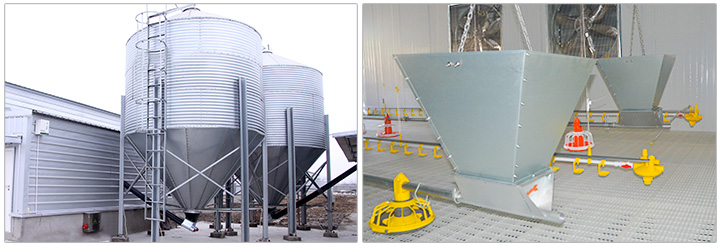

| Silo | Hopper |
| 1.2mm thickness hot galvanized steel. diameter 2.65m, 6 legs, actual capacity 90%.Feed density 0.65ton/m3.Material of silo is galvanized steel (275g) ,which is anti-erosive and ensures the long service life. | Volume: 70kgs;
Material: Hot galvanized sheet(275g/m2); Sheet thickness:1.0mm |

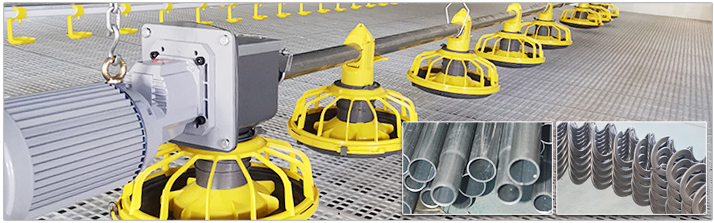

Feed Pipe With Auger
φ45mm, 4 holes/3 M; Material: Hot galvanized sheet; Auger is imported from South Africa.

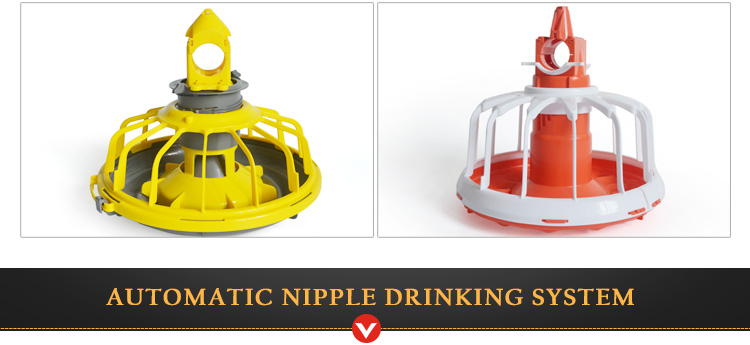

Feed Pan
14grills, diameter:330mm, weight:0.7kg Material: PP, UV, anti-aging Number of birds/pan: 45-65 birds

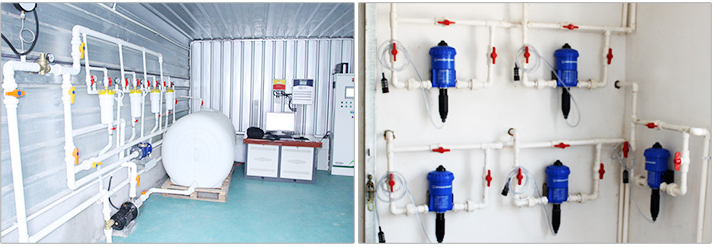

| Filter | Medical Pump |
| With back-flushing system and double filtration.
Filter fineness is less than 5 micron. Spare filter element is provided. Filter element can be cleaned without being dismantled by using backwash device. |
Dosatron imported from France.The vacuum siphon principle is used to automatically add medicine, and the backwash channel is installed
Working pressure: 0.3bar-6bar. Highest working temperature: 40℃ Dilution percentage: 0.2%-2% |

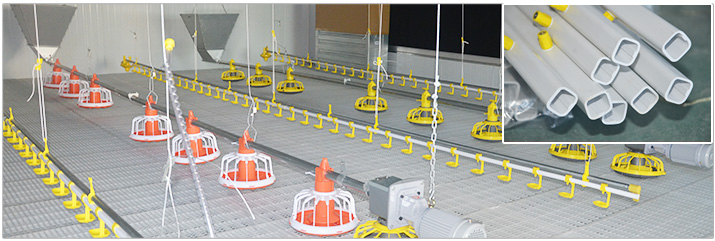

| Water Pipe |
| 25mm*2mm PVC square pipe,resistance 90° bending with seven times. |

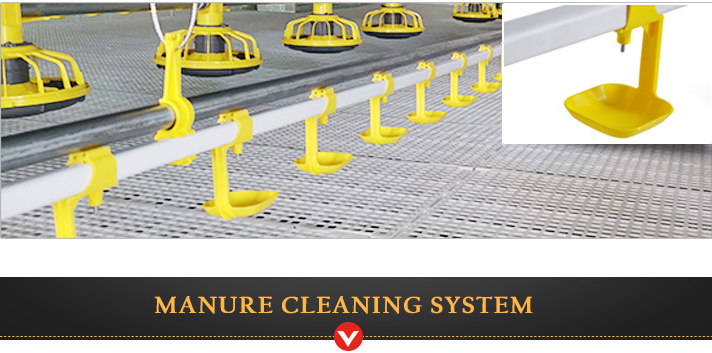

| Nipple Drinker |
| Material: 304 stainless steel pin, plastic PP covered nipple, no water leaking ,360 degree make sure large waterflow.
Water flow:80-90ml/min Broiler:8-12 birds/nipple |

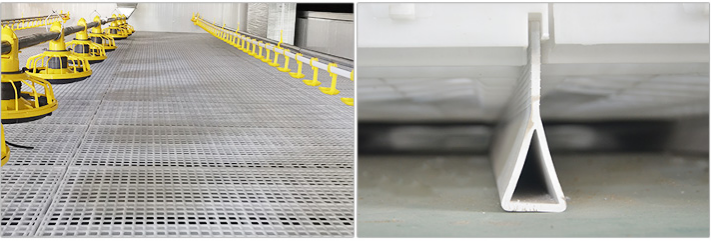

| Plastic Slat | Trangle Beam |
| Slat size :1.2x0.5m
P.P material Hole size:1.5*1.5mm/2.7*1.5mm ( customized) Slat weight: 2kg/2.3kg |
Material: PVC
Thickness:3mm Height:12cm Width:42mm |

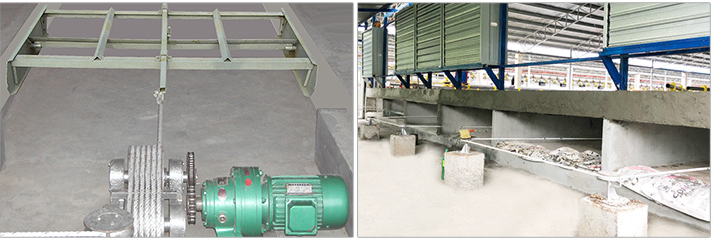

| Traction Type Manure Cleaning System |
| Scraper type manure cleaning system are cleaned to the end of the house. Compact structure,small size,low weight and simple operation. Manure scraping panel is fully hot-dip galvanized. It's much more economical and can save labor cost, help improve poultry house environment. |
FAQ：
Do you offer samples?
Yes, all products are available provided as samples.
Can you help customer to design their own products?
Yes, Not only customized works, Handy Man also help you create special design products according to your needs.
Do you accept sample order or small order?
Yes, we supply sample order for customer as well.
What is the process of ordering and cooperating with Handy Man?
•Search for the products you prefer •Solve problems and confirm the products •Quote the selected products •Types of payment •Delivery method •After-sale service
Are all the products approved international certification?
Most of our products have approved CE certification. Moreover, all products have been tested and full inspection before shipment
Can we have our logo on the product?
Absolutely! As long as ordered quantity meets our m.o.q and provide us with your drawing, we are able to place your logo on the product.
How long will we receive the goods?
The delivery time is normally 30-45 days after receiving down payment.
Is there any product guarantee?
We have full after-sales-service. And if you found any defective product, excluding improper use, we would offer replacement services.
